Display | |
Size | 23.6“ |
Resolution | FHD 1920 x 1080 |
Brightness | 250 nits |
Contrast Ratio | 1000 : 1 |
Backlight | LED type |
Viewing Angle | 170° (H)/160° (V) |
Touch Screen | Projected Capacitive Multi-Touch |
System | |
Computing Unit | AllWinner A83T |
Memory | 1GB DDR3L (up to 2GB) |
LVDS | Dual Channel 24-bit |
LAN Chipset | Realtek RTL8211 |
Audio | 2W x 2 |
Storage Device | eMMC 16G |
OS | Android 6.0 |
I/O Interface | |
Display | – 1 x VGA (Optional between VGA or COM Port) – 1 x DP – 1 x HDMI |
USB | – 2 x USB 2.0 – 1 x Micro USB for Touch only |
Ethernet | 1 x Gigabit Ethernet |

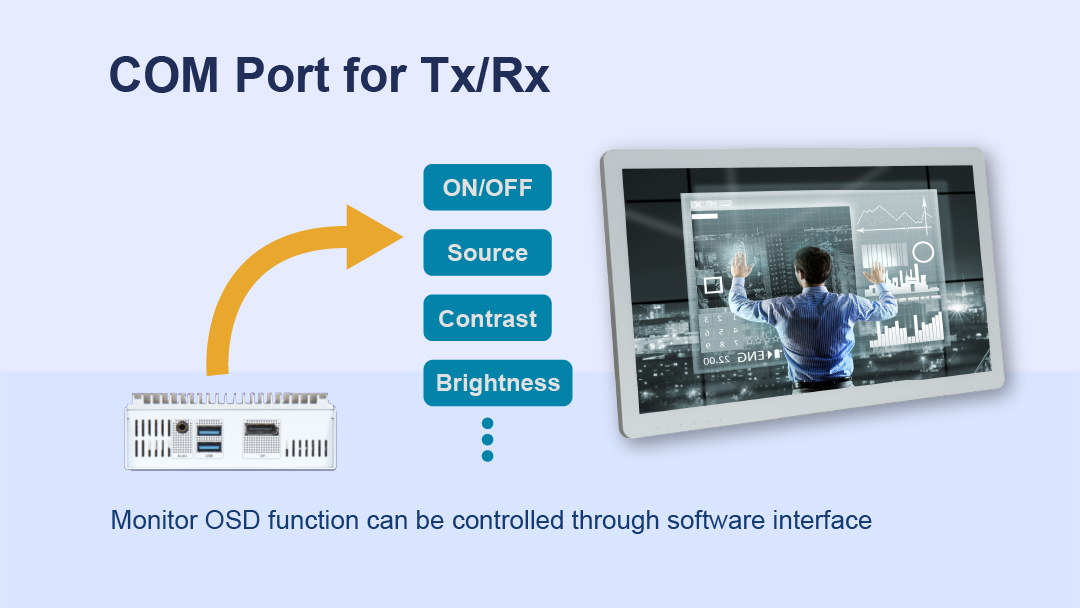

Serial Port | COM Port for Tx/Rx of RS232 controlling OSD function (Optional between VGA or COM Port) |
Power | 12V DC Jack |
Mechanical & Environmental | |
Water/Dust Resistance | Front Panel: IP65 |
Dimension | 561.9(W) × 353.36(H) × 42.9(D)mm |
Weight | 4.6 kg |
Mounting | Standalone, VESA 75mm x 75mm |
Certification | CE/FCC Class A |
