MEDS-P2205

21.5” 11th Gen. Core™ i Fanless Medical Grade Panel PC

Product Features

Tiger Lake Core™ i series processor
EN 60601-1 medical certification approved
Fan-free design with efficient thermal dissipation
21.5″ Full HD 1080p resolution widescreen display
True flat touch screen with 10 point multi-touch, PCAP touch and glove operation
Solid IP65 water & dust proof front bezel
Optional back-up battery support 30-60 mins operating

Main
Processor	Intel^® Core™ i5-1145G7E 4.1 GHz, Cache 8MB
Memory	Single Channel DDR4 SODIMM up to 32 GB
Storage	1x mSATA SSD up to 512GB
OS Support	Win 10 IoT, Linux
Display
Size	21.5 inch
Resolution	FHD 1920 x 1080 (16:9)
Brightness	250 nits
Contrast Ratio	1000:1
Backlight	LED type
Backlight MTBF	25,000 hours
Viewing Angle	170° (H)/160° (V)
Touch Screen	Projected Capacitive Multi-Touch
I/O Interface
USB	4x USB 3.0
Serial Port	2x RJ45 for RS232
Ethernet	2x Gigabit LAN
Display	1x HDMI
Audio	1x Combo audio jack
OSD function key	Power switch/ Volume/ Brightness
DC input	1x 9V-36V DC jack
Peripherals and Devices
Audio	2x built-in 3W speaker
WLAN & Bluetooth	WLAN 802.11 ac/a/b/g/n and Bluetooth 4.0
Battery	Back-up battery support 30-60 min operating (optional)
Power
Power Consumption	65W (Max.)
Power Requirement	– DC 9-36V input with power adapter – DC 19-24V input with power adapter(w/ battery)
Mechanical & Environmental
Water/Dust Resistance	– Front panel: IP65 – Whole system: IPX1
Operating Temperature	0°C ~ 35°C
Dimensions	561.9(W) x 353.4(H) x 54.7(D) mm
VESA Mounting	75mm x 75mm, 100mm x 100mm
Certifications	– CE/ FCC Part 18 Class B – EN 60601-1 3rd ed. – EN 60601-1-2 4th ed.

MEDS-P2205

Medical Grade Panel Computer

Powerful Computing / Medical Certified
Fan-free design / Light and slim / Rich IO

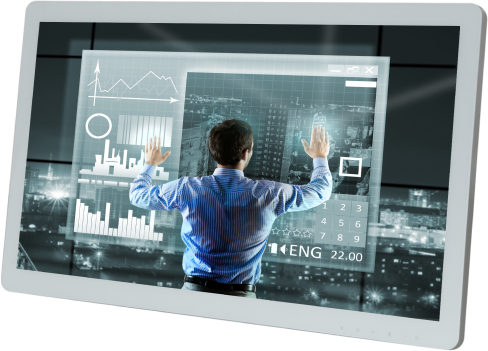

MEDS-P2205

Simple but complete.

MEDS-P2205 is 21.5”panel PC run with Intel® 11^th Gen. Core™ i series processor(formerly Tiger Lake UP3) mainly for surgical room and medical equipment control platform in hospital. With high computing power and streamlined design features, MEDS-P2205 will be a ideal choice for various application in healthcare/medical field.

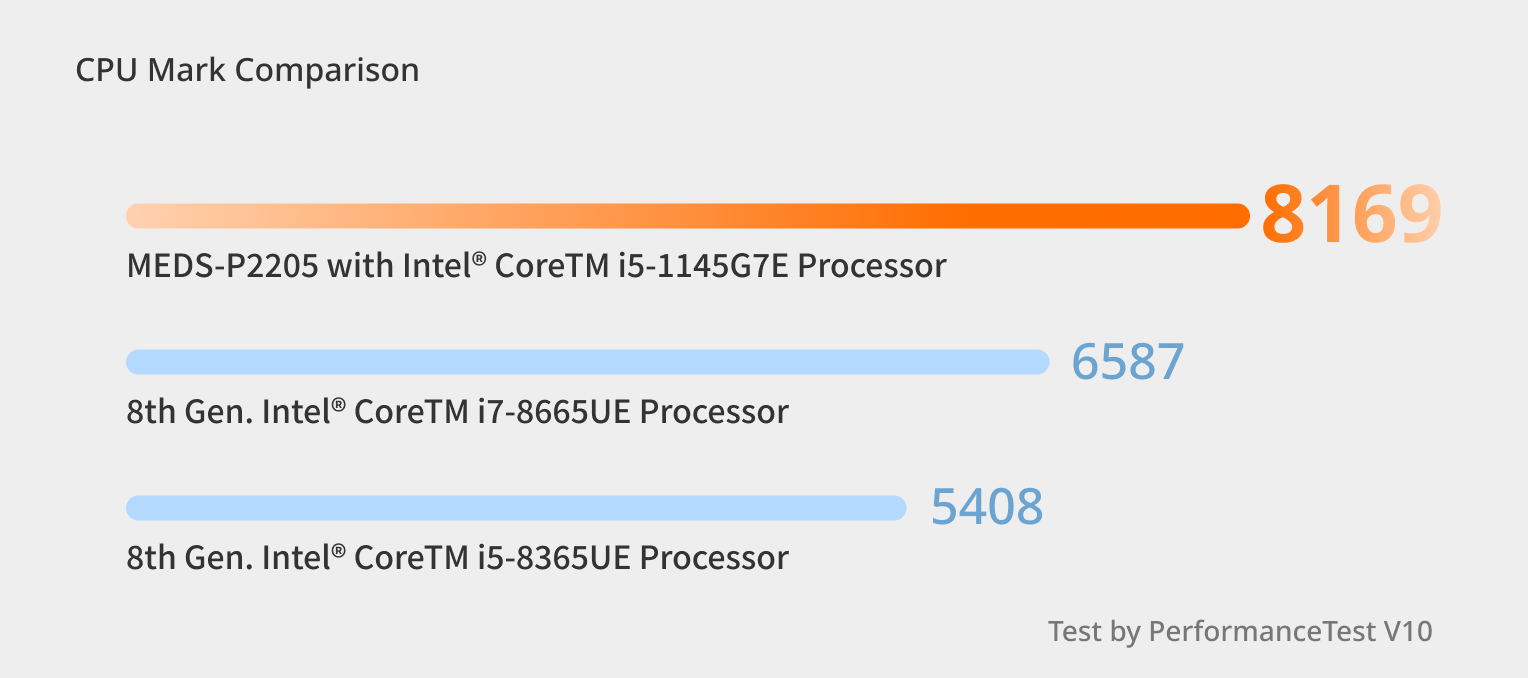

Outstanding Computing Power

Equipped with Intel® 11th Gen. Core i3/i5/i7 processor bring you incredible performance but efficient consumption.

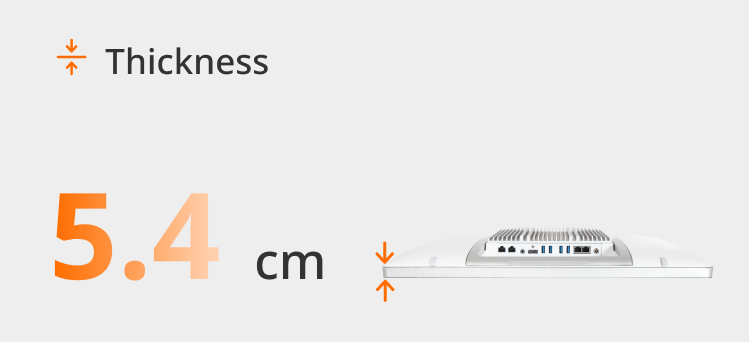

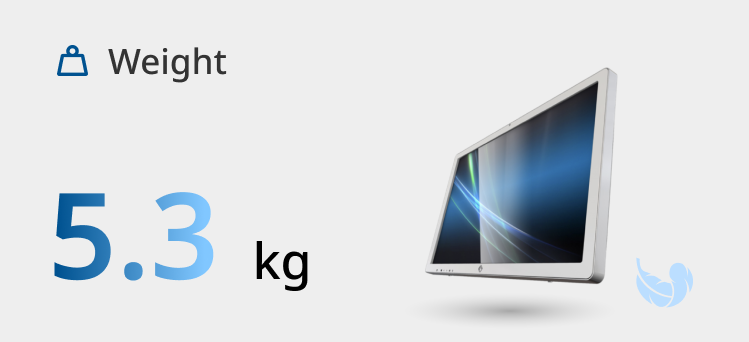

Light and Elegant

One of the most light and slim medical Panel PC and designed in streamlined outlook and stylish back cover.

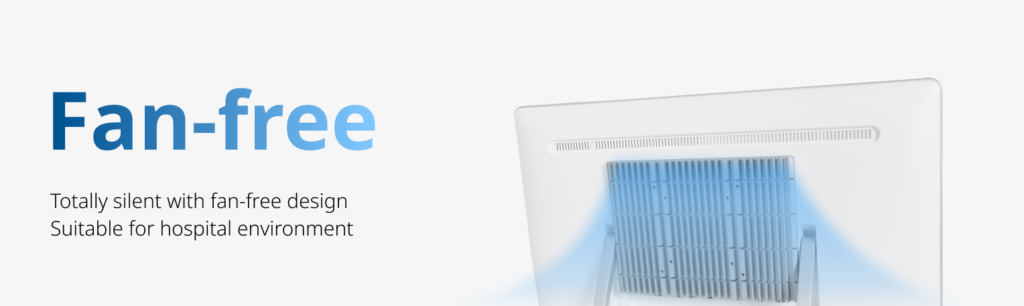

Free and Quiet

MEDS-P2205 are completely silent with its fan-free and passive thermal dissipation.

Running with low TDP processor, they will always be low-temp. in hospital.

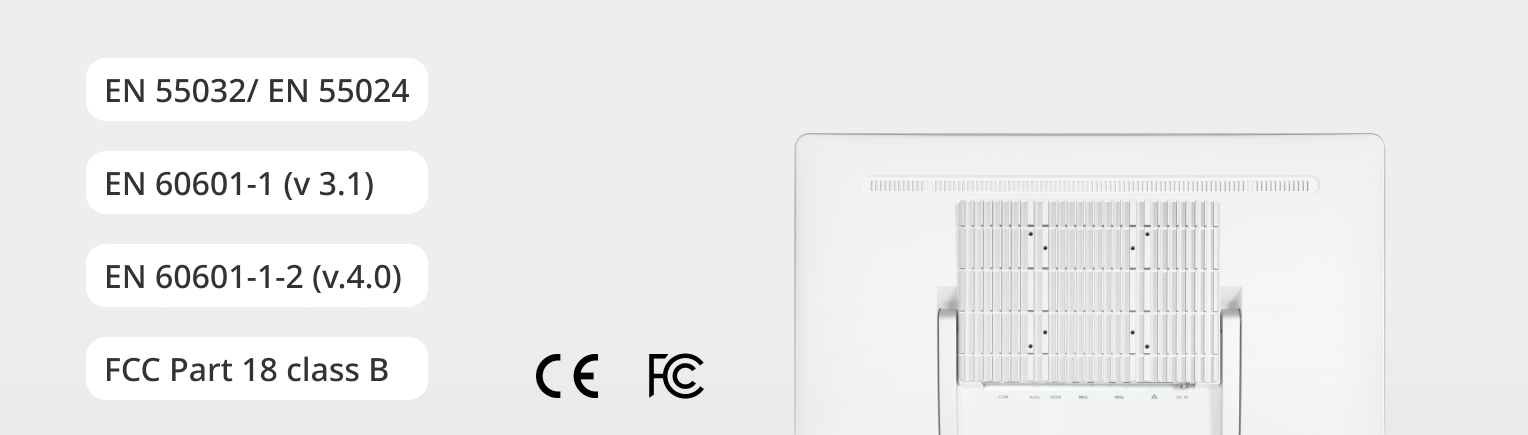

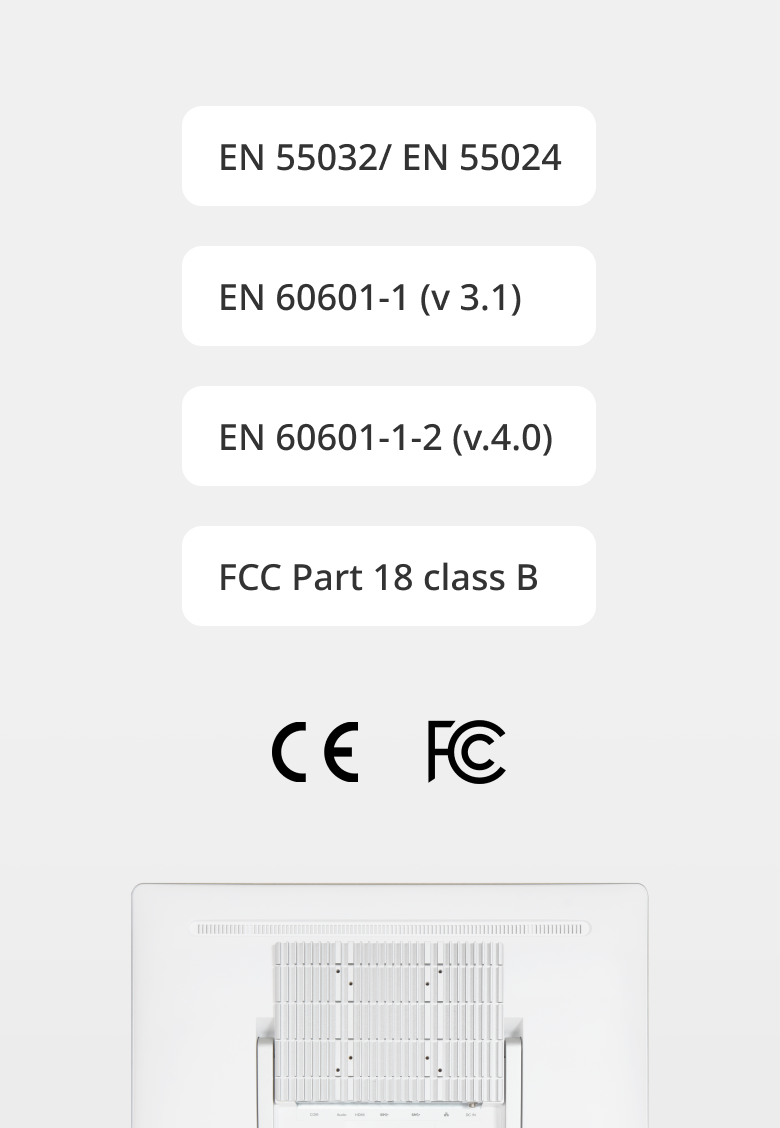

Medical Grade Protection

Passing medical safety regulations is the basic threshold for entering the medical market, and showing our research and development capabilities in medical products. Thus, we designed MEDS-P2205 with high-level EMC protection as medical equipment HMI.

Medical grade protection and related certification compliance makes main board be trusted and safe.

Low interference signal emission to ensure other medical equipment run stably.

High electromagnetic immunity to resist external interference and prevent system error.
