21.5” 8th Gen. Core™ i Fanless Medical Grade Panel PC
| Main | |
|---|---|
| Processor | – Intel® Core™ i3-8100(10W) 3.6 GHz, Cache 6MB – Intel® Core™ i5-8500(10W) up to 4.1 GHz, Cache 6MB |
| Memory | Single Channel DDR4 SODIMM up to 16 GB |
| Storage | 1x mSATA SSD up to 512GB |
| OS Support | Win 10/ Win 10 IoT |
| Display | |
| Size | 21.5 inch |
| Resolution | FHD 1920 x 1080 (16:9) |
| Brightness | 250 nits |
| Contrast Ratio | 1000:1 |
| Backlight | LED type |
| Backlight MTBF | 25,000 hours |
| Viewing Angle | 170° (H)/160° (V) |
| Touch Screen | Projected Capacitive Multi-Touch |
| I/O Interface | |
| USB | 4x USB 3.0 |
| Serial Port | 2x RJ45 for RS232 |
| Ethernet | 2x Gigabit LAN |
| Display | 1x HDMI |
| Audio | 1x Combo audio jack |
| OSD function key | Power switch/ Volume/ Brightness |
| DC input | 1x 12V-24V DC jack |
| Peripherals and Devices | |
| Audio | 2x built-in 3W speaker |
| WLAN & Bluetooth | WLAN 802.11 ac/a/b/g/n and Bluetooth 4.0 (optional) |
| Battery | Back-up battery support 30-60 min operating |
| Power | |
| Power Consumption | 65W (Max.) |
| Power Requirement | – DC 12-24V input with power adapter – DC 19-24V input with power adapter(w/ battery) |
| Mechanical & Environmental | |
| Water/Dust Resistance | – Front panel: IP65 – Whole system: IPX1 |
| Operating Temperature | 0°C ~ 35°C |

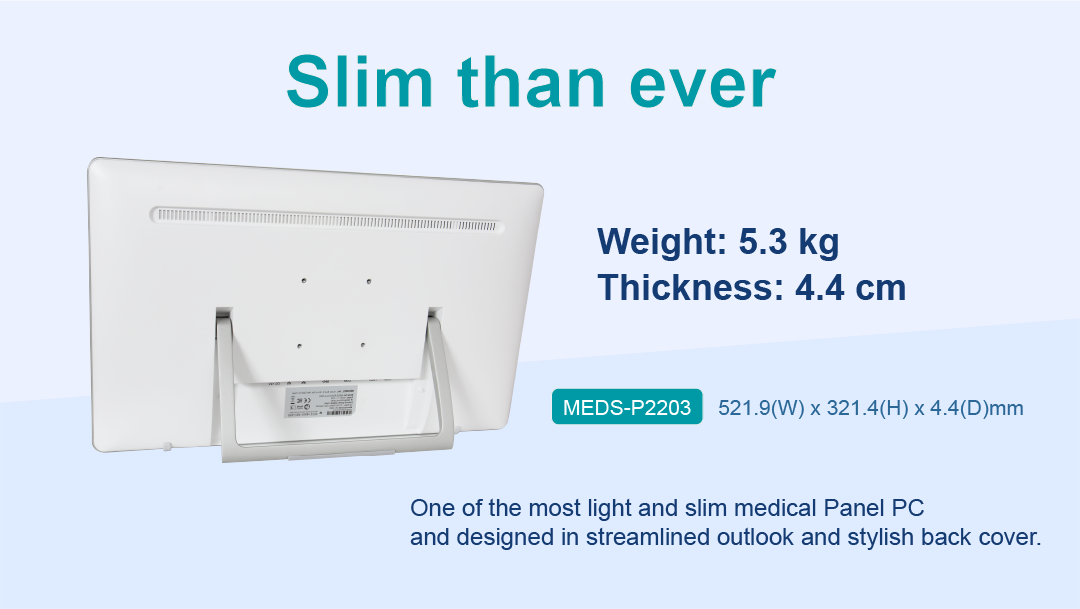

| Dimensions | 521.9(W) x 321.4(H) x 43.7(D) mm |
| VESA Mounting | 75mm x 75mm |
