18.5 inch Medical Grade HMI system
| Main | |
|---|---|

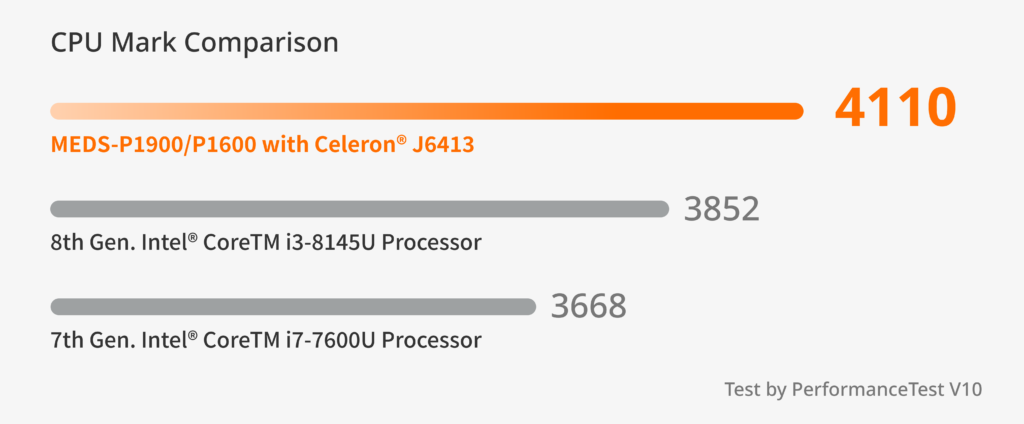

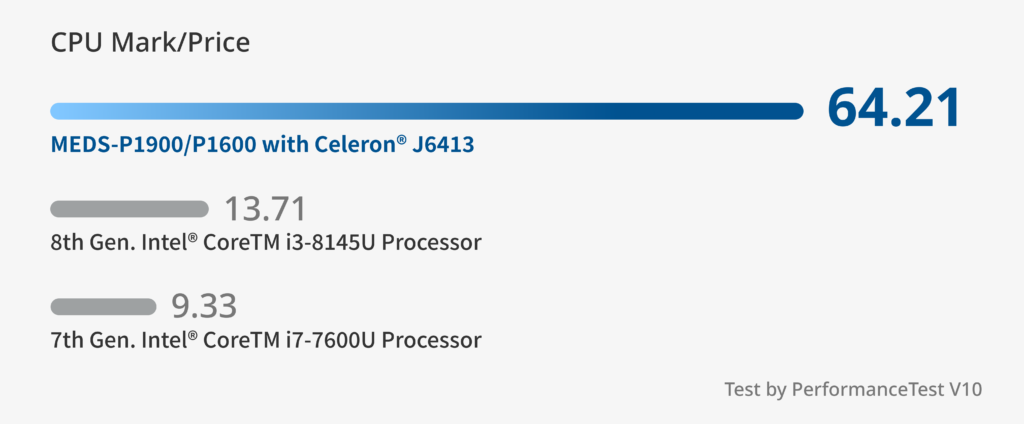

| Processor | Intel® Celeron® J6413 1.5M Cache, 1.8GHz (3.0GHz) |
| Memory | Single Channel DDR4 SODIMM up to 32 GB (default: 8G) |
| Storage | 1x M.2 B key 2280 (SATA) (default: 256GB SSD) |
| OS Support | Win 10 IoT, Linux |
| Display | |
| LCD Size | 18.5 inch |
| Resolution | 1366 x 768 (16:9) |
| Brightness | 450 nits |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50,000 hours |
| Viewing Angle | 170ﾟ(H)/160ﾟ(V) |
| Touch Screen | Projected capacitive 10 points multi-touch |
| I/O Interface | |
| USB | – 2x USB 3.1 Gen 1 (5Gb/s) on rear I/O – 4x USB 2.0 on board on rear I/O – 2x USB 2.0 on board pin header |
| Serial Port | 1x RS-232 on rear I/O |
| Ethernet | 2x 1GbE LAN on rear I/O with Intel i225LM |
| Display | 1x HDMI |
| Audio | 1x Combo audio jack |
| DC input | 1x 9V-24V DC jack |
| Peripherals and Devices | |
| WLAN & Bluetooth | WLAN 802.11 ac/a/b/g/n and Bluetooth 4.0 |
| Power | |
| Power Consumption | 65W (Max.) |
| Power Requirement | DC 9-24V input with power adapter |
| Environmental& Certification | |
| Water/Dust Resistance | Front panel: IP65 Whole system: IPX1 |
| Operating Temperature | 0°C ~ 40°C |
| VESA Mounting | 75mm x 75mm, 100mm x 100mm |
