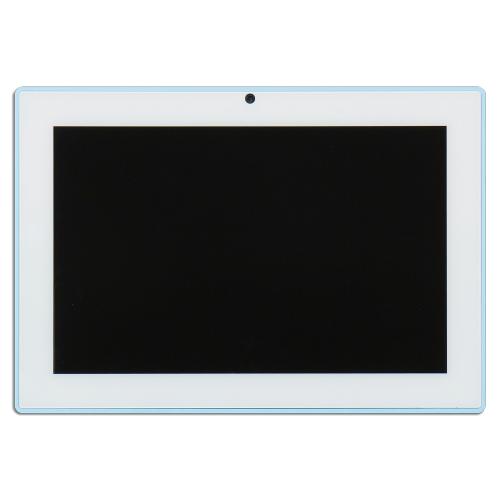

10.1 inch Medical Grade Point-of-Care Terminal HMI
Display | |
---|---|
LCD Size | 10.1″ |
Panel Type | MVA |
Resolution | WXGA 1280 x 800 (16:10) |
Brightness | 300 cd/m² |
Contrast Ratio | 1300 : 1 |
Backlight | TFT-LCD |
Touch Screen | Projected capacitive 10 point multi-touch |
Viewing Angle | 170°(H)/170°(V) |
Color Support | 16.7 million colors |
System | |

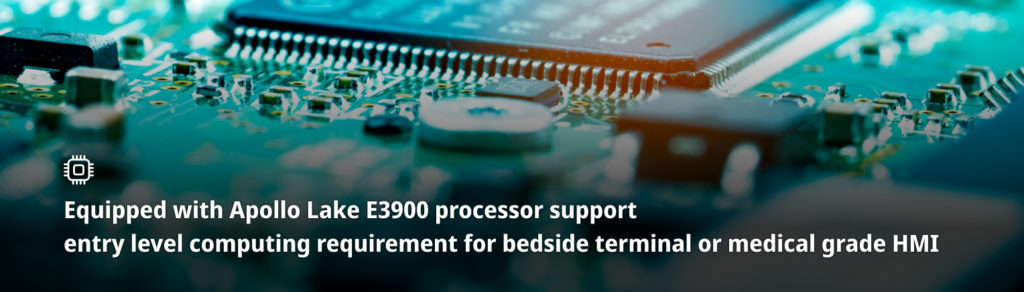

SoC | Intel® Atom® Dual-Core x5-E3930 (1.3GHz, up to 1.8GHz) |
Memory | 1x DDR3L SO-DIMM 1333/1600/ 1866 MHz up to 8 GB |
Storage Device | 1x M.2 SSD up to 512G |
WLAN & Bluetooth | WLAN 802.11 ac/a/b/g/n and Bluetooth 4.0 (optional) |
OS | Win 10/ Android 6.0/ Linux™ Ubuntu 16.10 |
I/O Interface | |
Series Port | 1x RS-232/422/485 |
Display | 1x HDMI |
USB | 2x USB 3.0 |
Ethernet | 1x Gigabit Ethernet |
Audio | 1x 3W speaker |
Power Switch | 1x power on/off switch |
Camera | 1x 5MP Camera (optional) |
Power | |
Power Input | 12V DC Jack |
Power Supply | 60W AC-DC Adapter |
Mechanical& Environmental | |
Water/Dust Resistance | Front panel: IP65 |
Operating Temperature | 0°C ~ 35°C |
Dimensions | 262(W) x 180(H) x 38(D) mm |
Weight | 1.3 kg |
Mounting (mm) | VESA Mount 75 x 75 |

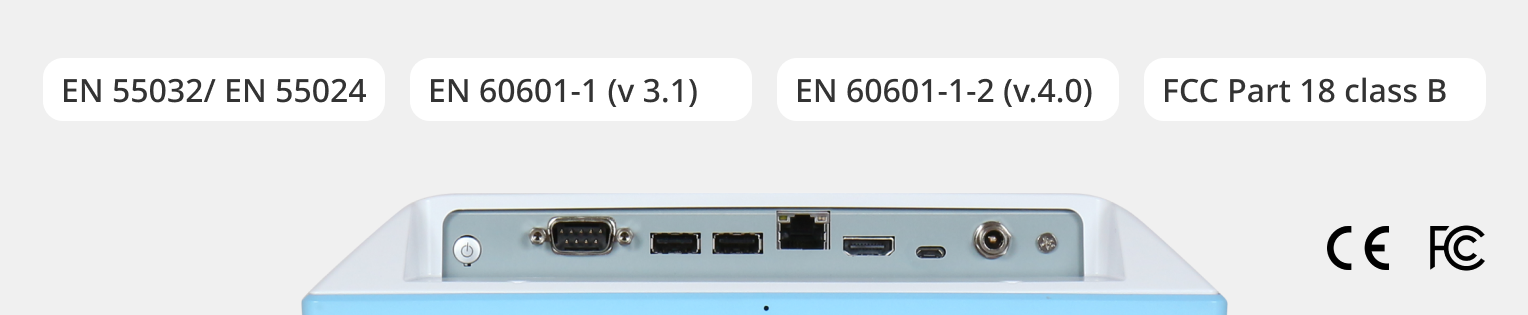

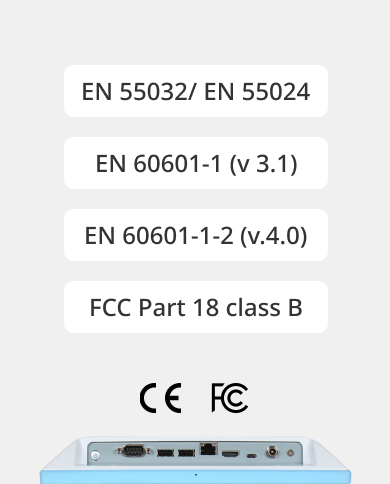

Certificate | – CE/ FCC Part 18 Class B – EN 60601-1-1 3rd ed. – EN 60601-1-2 4th ed. |
Medical Certified/ Efficient computing
Compact size/ Fan-free design / Dual OS support

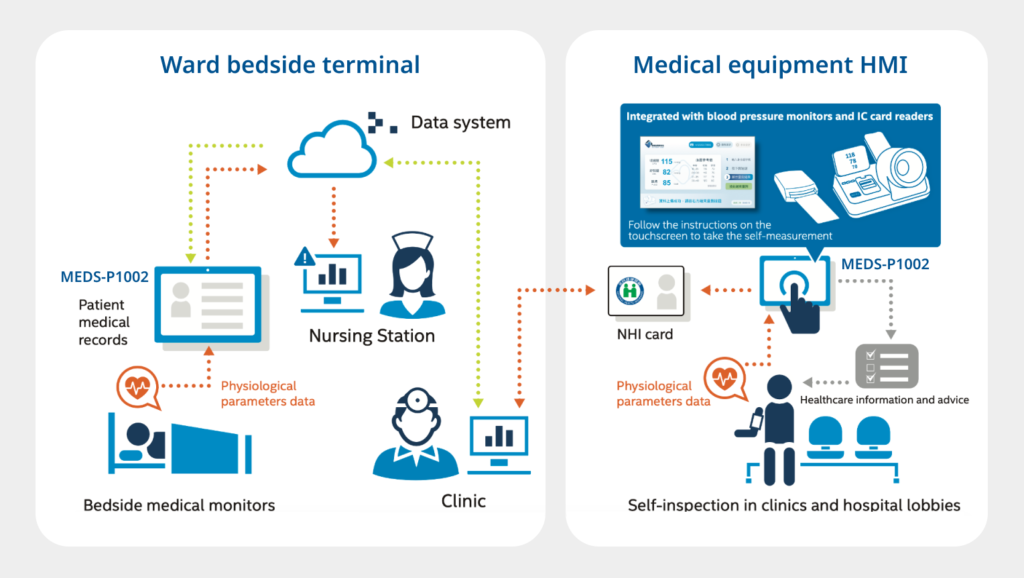

MEDS-P1002 is 10.1“ panel PC with Intel® Atom® x5-E3930 processor mainly for medical equipment HMI and ward bedside terminal. With latest medical certification EN60601-1 approved, MEDS-P1002 helps medical personnel efficiently complete their daily work and improve quality of patient care.
Support Win 10 and Android 6.0 OS for more friendly user control interface in hospital.
Passing medical safety regulations is the basic threshold for entering the medical market, and showing our research and development capabilities in medical products. Thus, we designed MEDS-P2205 with high-level EMC protection as medical equipment HMI.
Medical grade protection and related certification compliance makes main board be trusted and safe.
Low interference signal emission to ensure other medical equipment run stably.
High electromagnetic immunity to resist external interference and prevent system error.
