MEDN-51040

Medical LAN solution

Product Features

Intel i350 LAN chipset
Medical isolation according to IEC60601-1
4 TX and RX queues (per port)
1 Gb/s Ethernet IEEE 802.3, 802.3u,802.3ab PHY specifications compliant
Network isolator: RJ45 in/out dielectric strength: 4KV, IEC60601-1
Jumbo frames support for packets up to 9.5KB
IEEE802.3az-Energy Efficient Ethernet (EEE)
TCP/ UDP/ IP stateless offload

System
OS Support	Windows
LAN Controller	Intel Gigabit Ethernet Controller
Ethernet of Ports	Quad 1GbE Ethernet ports
Interconnect	4x RJ45, Unshielded female connector
Bus Type	x4 lane, operable in x4, x8, x16 slots 2.5 Gbps uni-directional, 5Gbps bi-directional
Operating Environment	0°C ~ 45°C
Storage Environment	-20°C ~ 70°C
Dimension	174.625mm(W) X 106.68mm(D) X 18mm(H)
Miscellaneous	Standard height short card w/ full height bracket
Certification	FCC, CE, IEC/EN 60601-1

MEDN-51040

Medical LAN Solution

Medical LAN card/ Intel i350 chipset/ 4 ports LAN/ Isolated design/ PCIe x4 / IEEE 802.3 protocol

MEDN-51040

Not only Netcom but Medical application

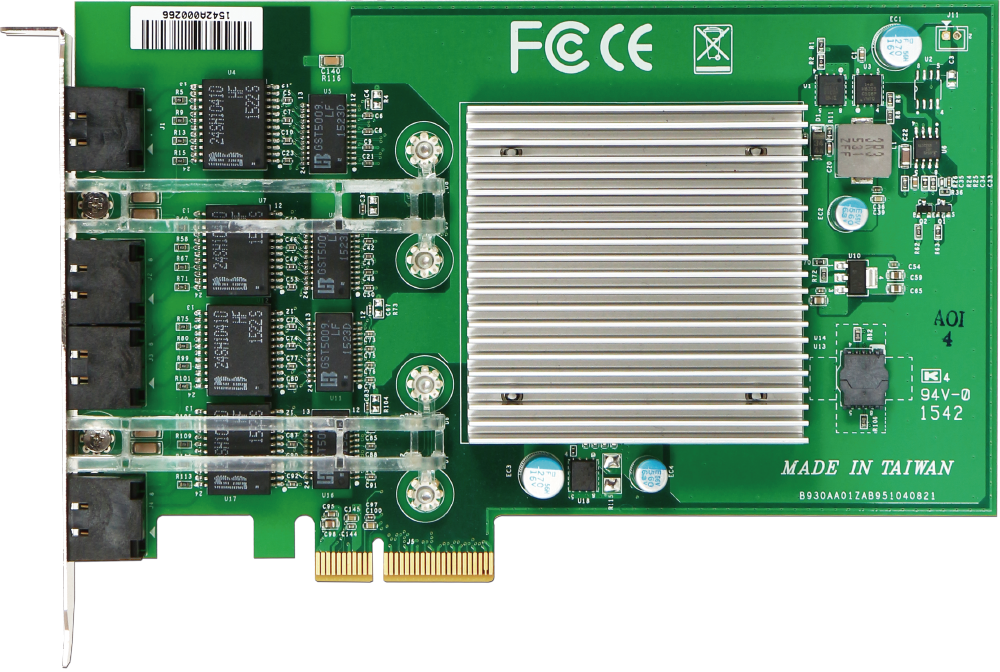

MEDN-51040 is a medical 4 ports LAN card that design with Intel i350 chipset. It not only has unique power isolation design but also has high-speed transmission interface. Let it can easily meet customer expansion requirements in different medical Ethernet applications.

Medical design

Better

Higher quality than industrial LAN card

More save

Means of Operator/ Patient Protection

MOOP

Means Of Operator Protection

MOPP

Means Of Patient Protection

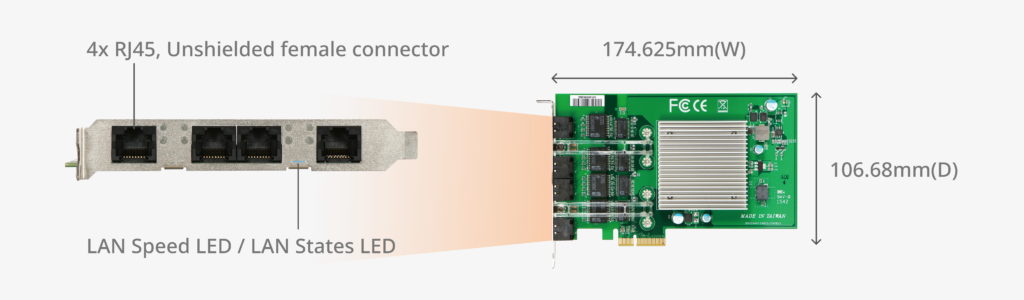

Product I/O

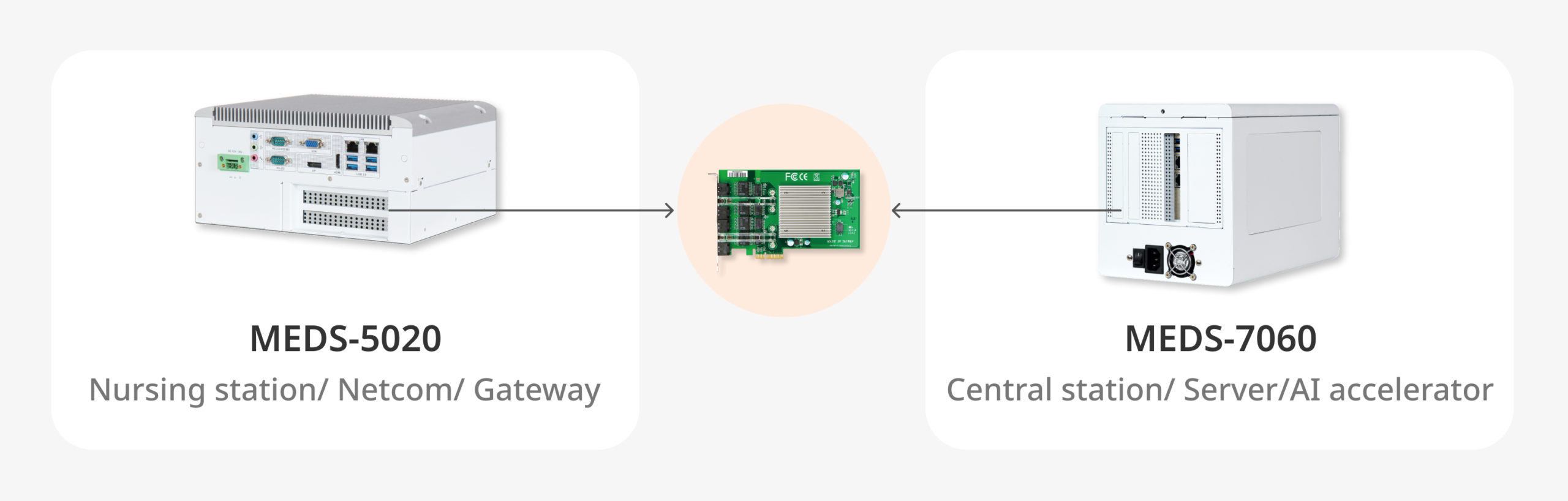

Flexible medical application

Customers can choose a suitable MEDS system with LAN card according to their application

Medical Certified

The LAN card that pass medical regulations is rare
