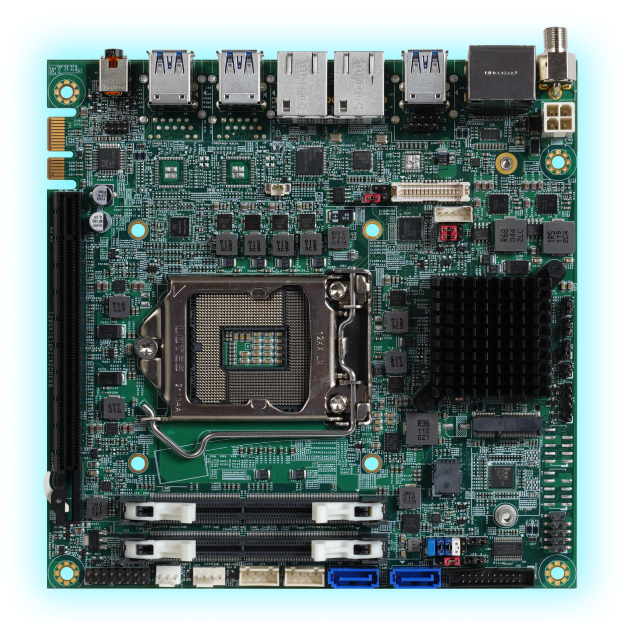

Intel® 10th Gen. Core™ i Mini-ITX Medical board (low profile)
TPMTPM 2.0
General | |
---|---|
Processor | Intel® 10th Gen Core™ Processors CPU in LGA1200 package, up to 65W |
Chipset | Intel® H420E |
BIOS | AMI uEFI BIOS |
Memory | 2x 260-pin DDR4 SODIMM sockets supported Data transfer rates up to 2400/2666/2933 MT/s 128GB |
Storage | – Support 2x 7-pin SATA III port – 1x M.2 M key 2280 (PCIe x4,SATA) |
Watchdog Timer | Programmable watchdog timer, time out period from 1 sec to 255 secs. |
Hardware Monitoring | System monitor (Voltage,Fan Speed and Temperature) |

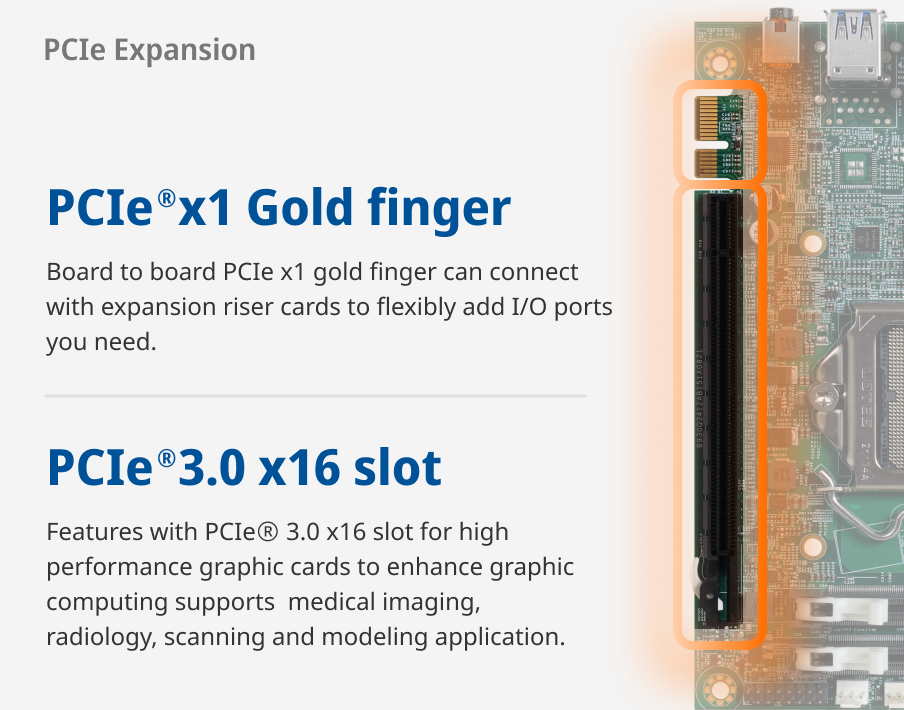

Expansion Interface | – 1 x PCIe x16 Gen3 slot – 1 x M.2 E key 2230 (PCIe x1, USB) – 1 x M.2 M key 2280 (PCIe x4, SATA) – 1 x PCIe x1 Gold Finger (include 2x PCIe x1 signal, co-lay with M.2 Key M PCIe x4) |
I/O Interface | |
Embedded Controller | IT5121 |
Audio | – Realtek® ALC897 HD codec – Combo audio jack |

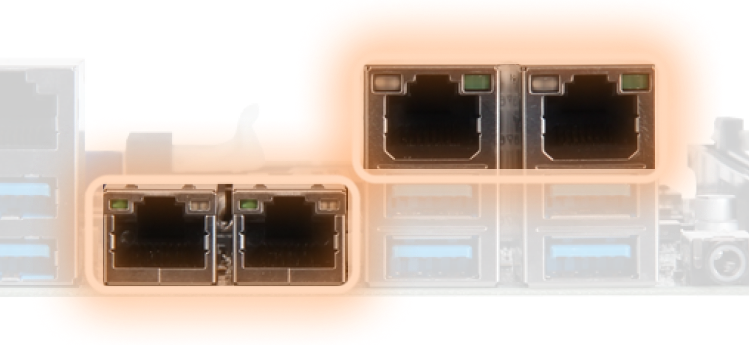

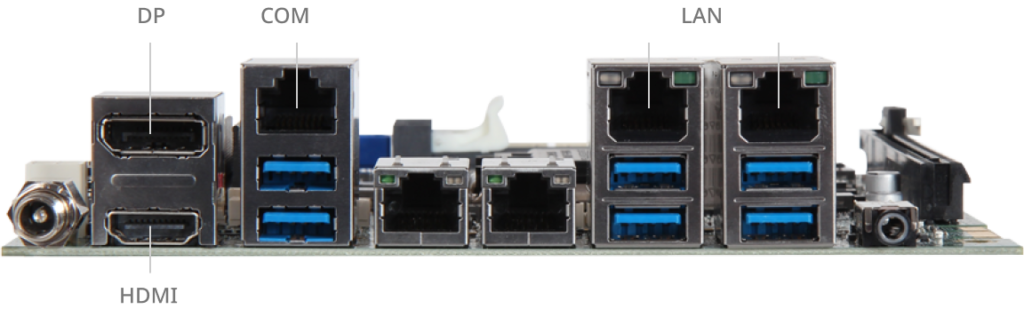

Ethernet | – 1x RJ45 connectors on rear I/O with Intel i225LM – 1x RJ45 connectors on rear I/O with Intel i219LM |

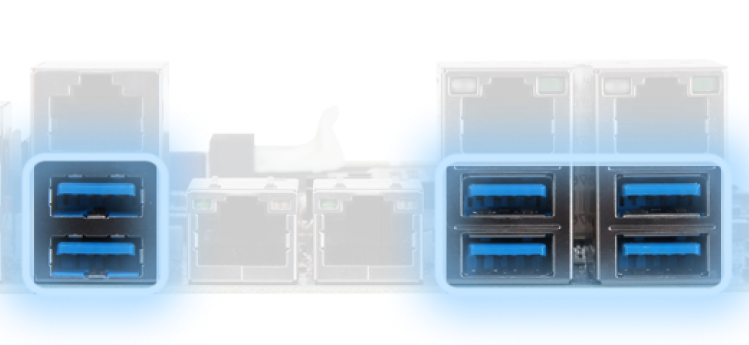

USB | – 6x USB 3.1 Gen 1 (5Gb/s) on rear I/O – 1x USB 2.0 on board pin header |
GPIO | 8-bit configurable controlled by embedded controller |
Display | |
Graphic Controller | – Intel® UHD Graphics 630 supports DirectX 12, OpenGL 4.5 – Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9 |

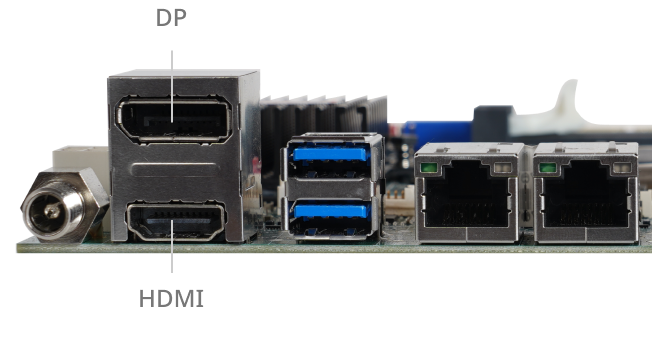

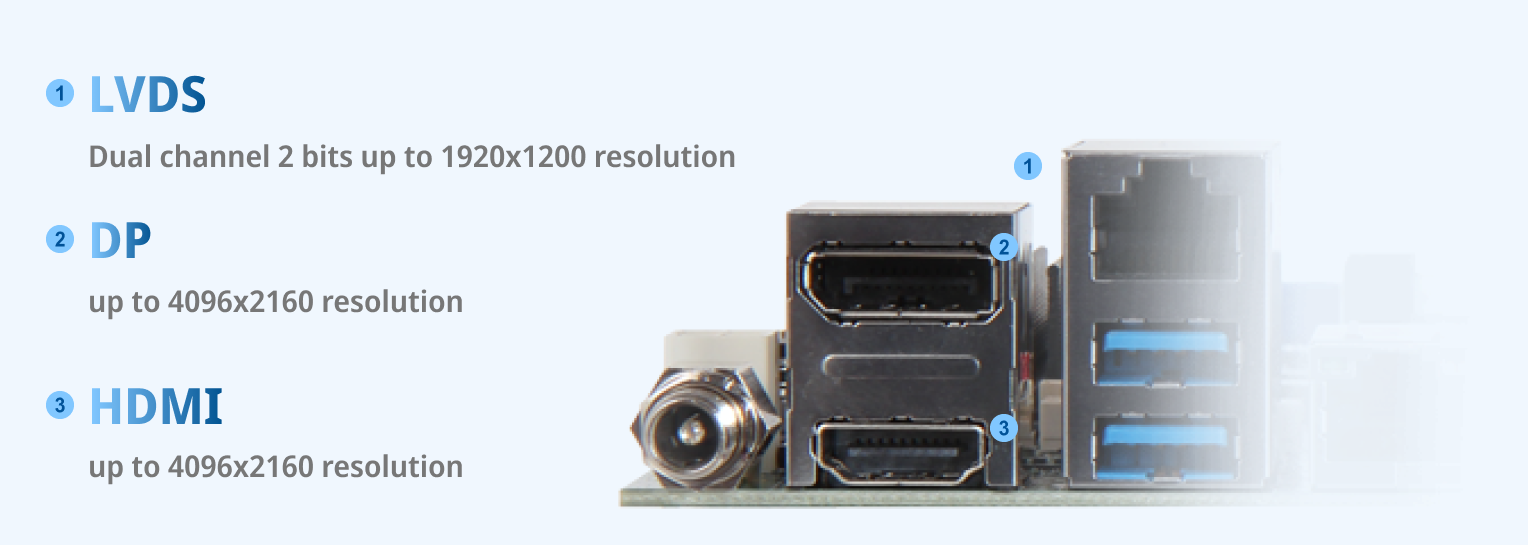

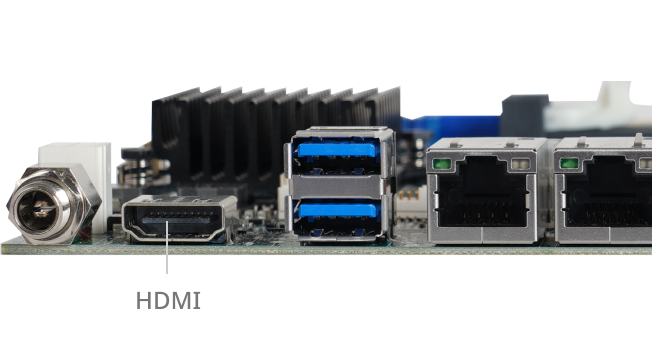

Display Interface | – LVDS: Dual channel 2bit LVDS on board, resolution up to 1920 x1200 – HDMI port on rear I/O, resolution up to 4096×2160 |
Mechanical& Environment | |
Dimensions | 170mm(L) x 170mm(W) |
Power Supply | 12V DC input or ATX Power input |
Environment | – Operating temperature: 0°C ~ 50°C – Storage Temperature: -20°C ~ 80°C – Relative Humidity: 5% ~ 95%, non condensing |
MTBF | Over 100,000 hours at 40°C |
