Full-size SBC system design with 4 PCIe slot for multiple add-on card in hospital application
Processor | Socket LGA1151 for Intel Coffee lake Core™ i7/i5/i3®, up to 65W |
Memory | 2x DDR4 SO-DIMM 2400/ 2666 memory up to 64GB |

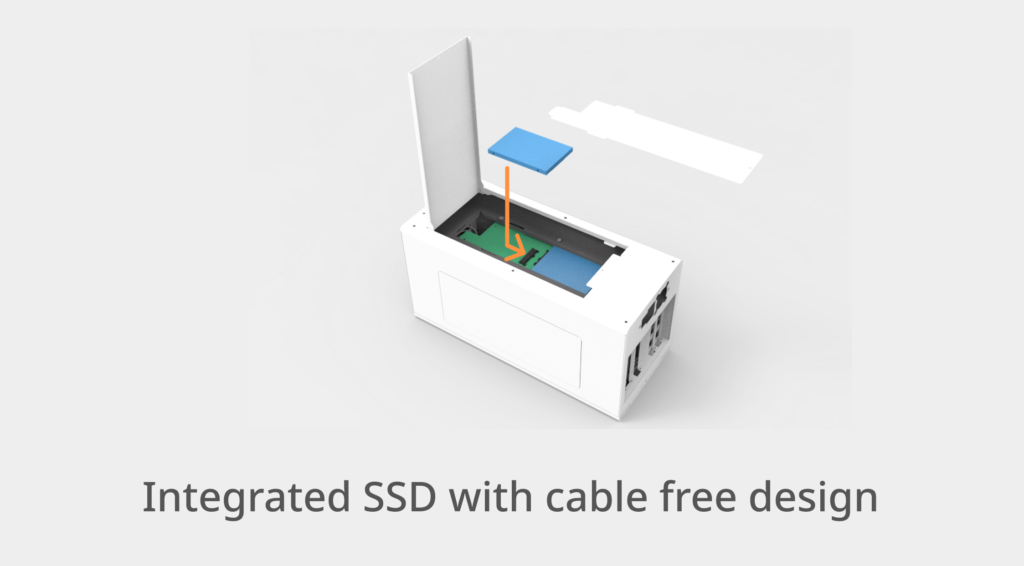

Storage | – 1x mSATA half size SSD – 2x 2.5″ SSD |
OS Support | Windows 10, Linux |
USB | USB3.0 x2 |
Serial port | N/A |
Ethernet | Gigabit LAN x2 |
Display | mini-DP x2 |
Audio | N/A |

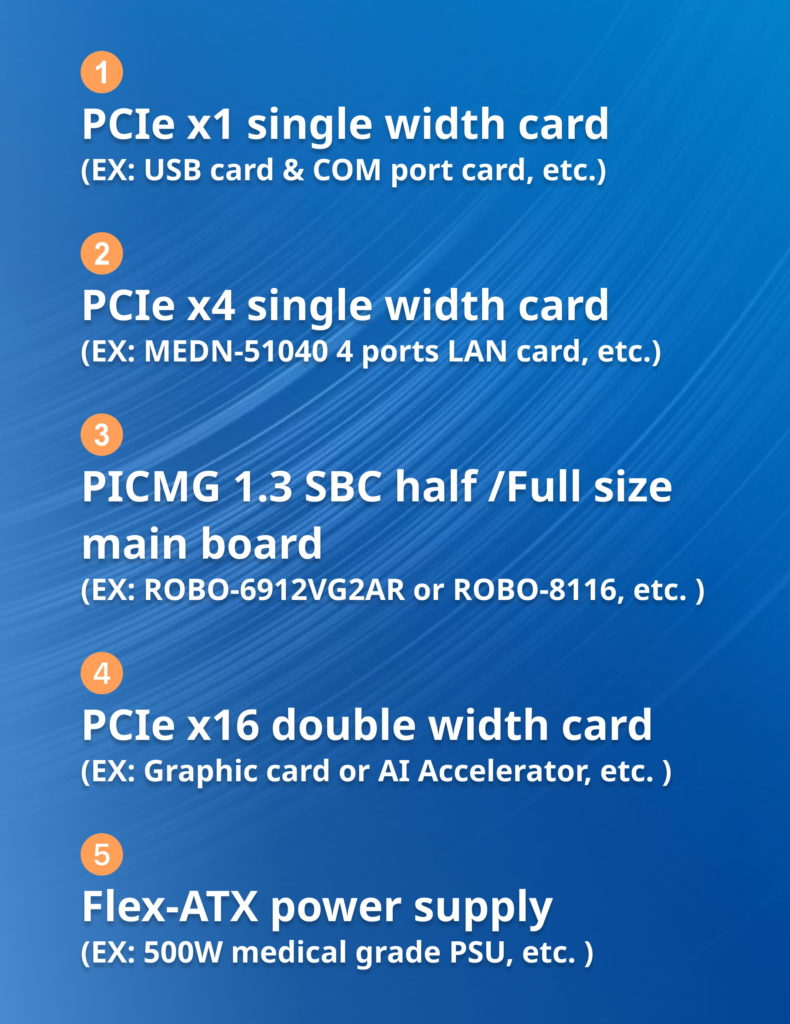

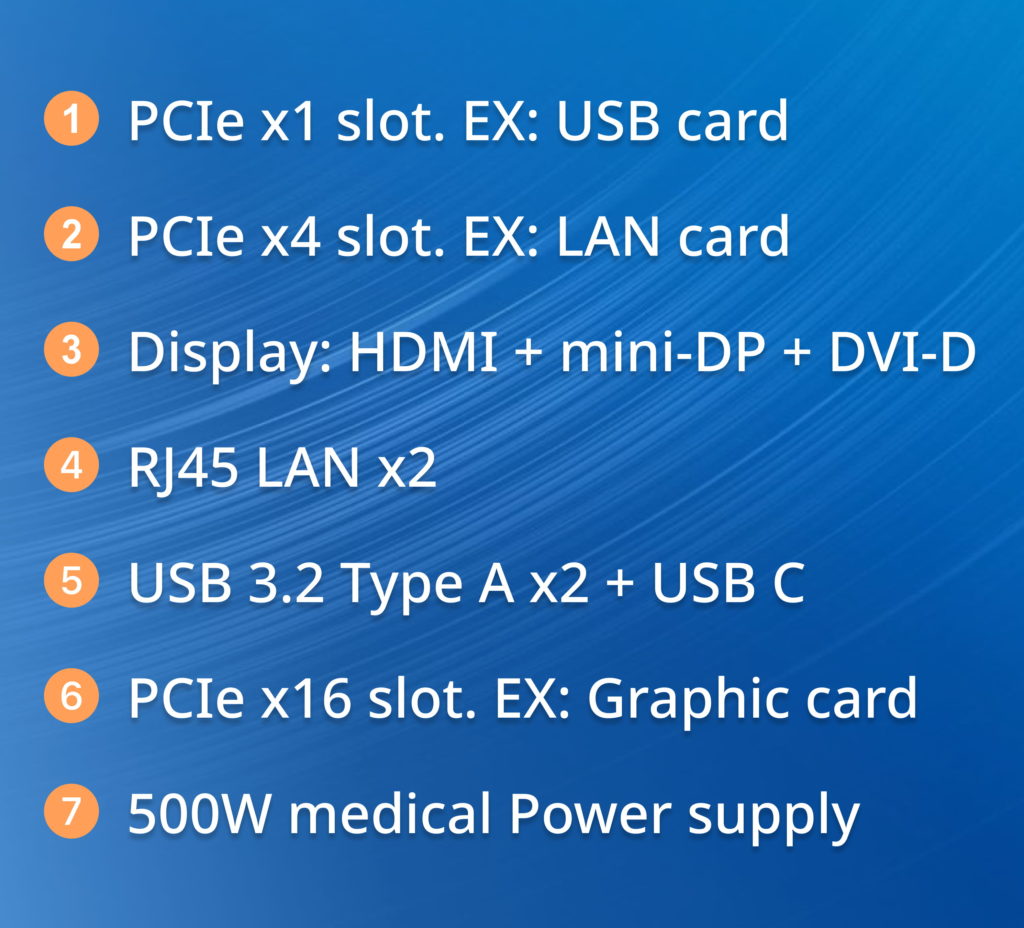

PCIe slot | – 1x PCIe x16 (x16 signal) – 1x PCIe x4 (x4 or x1 signal selectable) – 1x PCIe x1 (x1 signal) |
Optional | M.2 Bluetooth & Wifi module |
Power input | Power cord AC plug |
Power limit | 500W |

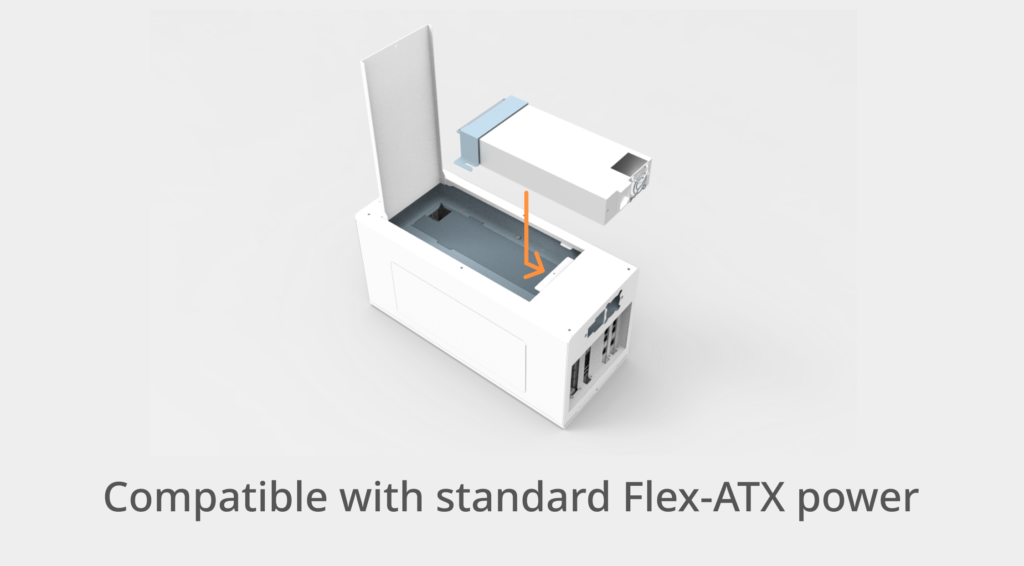

Power supply | 500W Flex-ATX power (Medical grade) |
Dimension(Wx Dx H) | 170 x 400 x 204 mm |
PICMG 1.3 / SBC design / Server grade
High performance/ Medical Certified

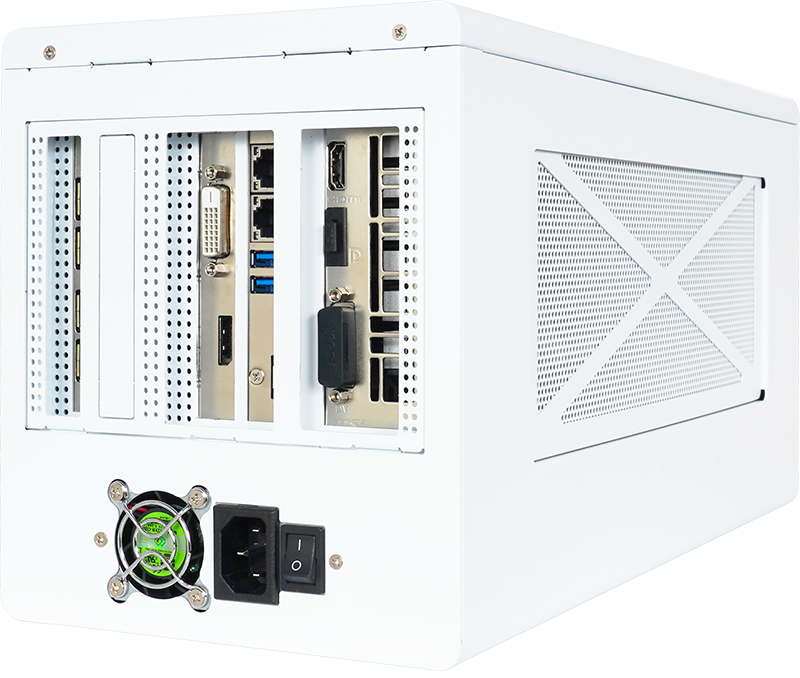

MEDS-7061 is designed for medical AI add-on card application with PICMG1.3 SBC and PCIe x16/ x4/x1 slots. PCIe x16 supports double width add-on card. (AI Accelerator/ graphic card/ VPU/ FPGA, etc.) PCIe x4 and x1 can support any other I/O card that customer needs. The chassis compact design with SBC sufficient I/O also can be change by request.
Respond quickly and reduce delays
Respond quickly and reduce delays
Respond quickly and reduce delays
Choose what you need

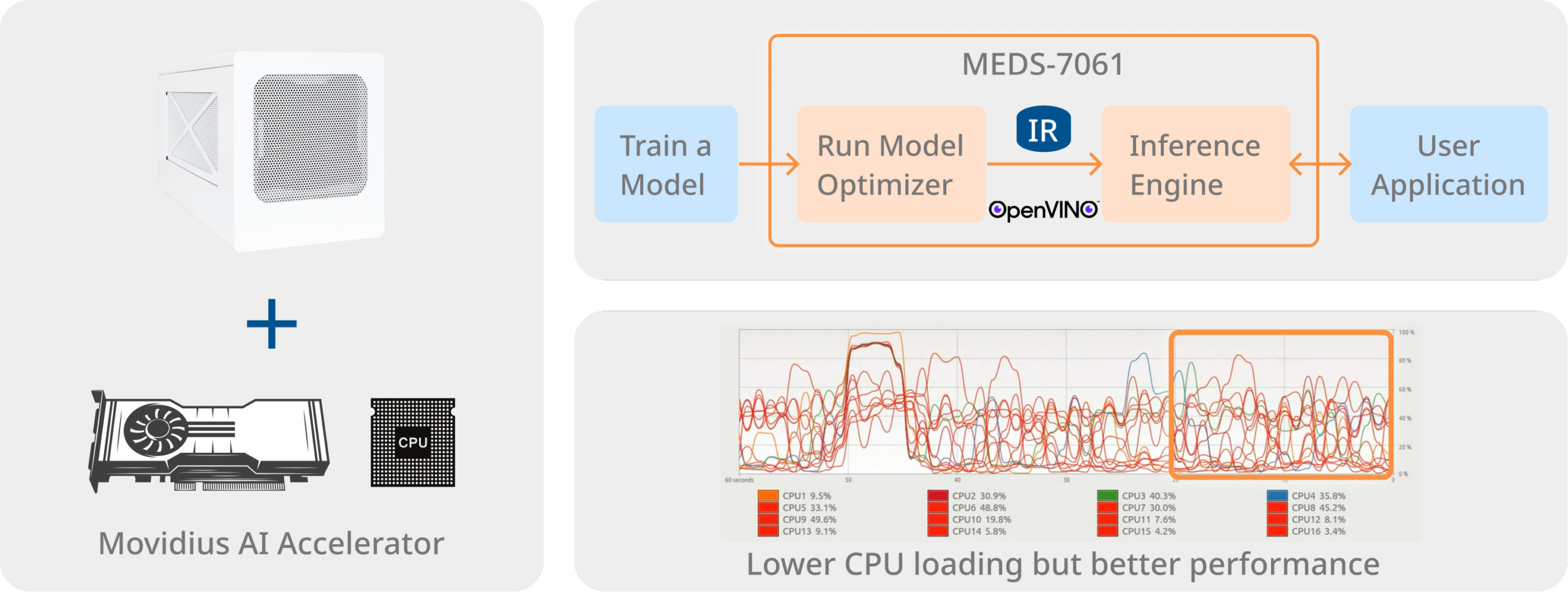

CPU loading & Improve the system performance
