Healthcare Edge AI Box
| Main | |
|---|---|
| Processor | Socket LGA1151 for Intel Coffee lake CoreTM i7/i5/i3®, up to 65W |
| Chipset | Intel® Q370/ C246 |
| Memory | 2x DDR4 SO-DIMM 2400/ 2666 memory up to 64GB |
| Storage | 1x mSATA (half size) |
| BIOS | AMI uEFI BIOS (SPI ROM) |
| Expansion | 1x PCIe x16 slot 1x PCIe x4 slot 1x PCIe x1 slot |
| I/O Interface | |
| Serial Port | N/A |
| USB | 2x USB 3.2 (Type-A) |
| Audio | N/A |
| Ethernet | 2x RJ-45 connector 2.5 GbE LAN |
| Display | 2x mini DP up to 4096×2304 |
| USB | 4x USB 3.0 |
| Serial Port | 2x RJ45 for RS232 |
| Ethernet | 2x Gigabit LAN |
| Display | 1x HDMI |
| Power Supply | |
| Power Input | 500W Flex-ATX PSU |
| Mechanical & Environmental | |
| Operation Temperature | (- )5°C ~ 40°C |
| Storage Temperature | (- )40°C ~ 70°C |

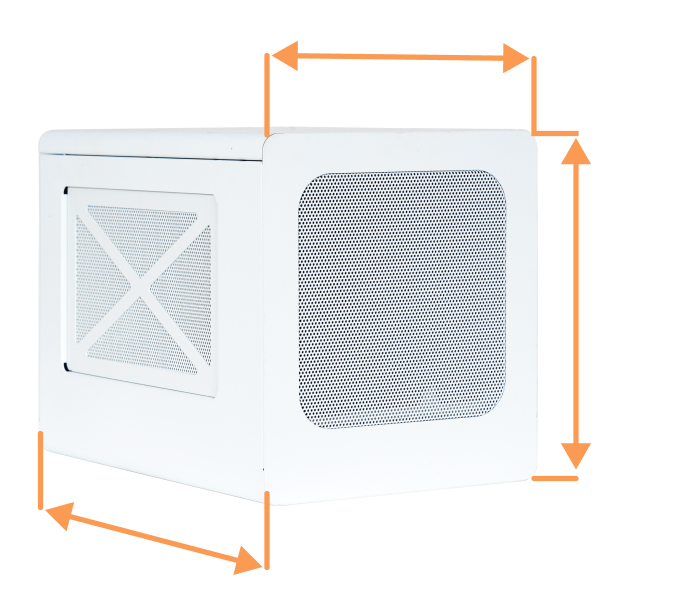

| Dimensions | 253(L)x175(W)x192(H)mm |
| Fan | 1x 6000RPM CPU cooler 1x 1600RPM system fan(120 x120 mm) |
