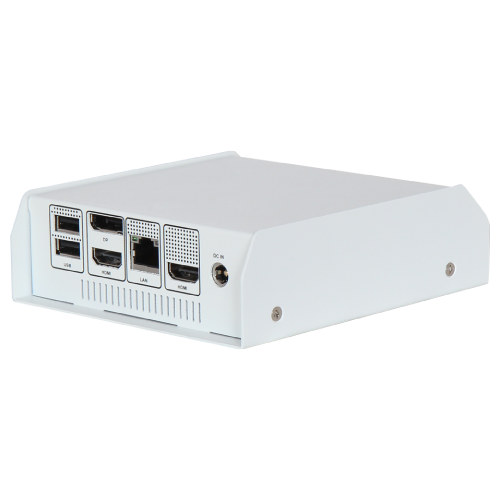

MEDS-2003

NUC size Medical System

NUC size 1U height compact chassis
MEDS-2000 equipped entry level CPU with fan free design
MEDS-2003 equipped Core level CPU with low dB fan design
Unique thermal solution
Rich I/O with dual display and support Wifi + Bluetooth module

Datasheet

Datasheet

System
Processor	Intel® Core™ i3-7100U,QC, 2.30 GHz, 15 W Intel® Core™ i5-7300U, QC, 2.40 GHz, 15 W
Memory	2x Dual Channel SO-DIMM DDR4 2133 MHz up to 32GB
Storage	1x SATA III port M.2 SSD 2260 (64/ 128GB)
BIOS	AMI uEFI BIOS 64MB
Expansion	2x M.2 Key E (Supports 2230) Key M (Supports 2260)

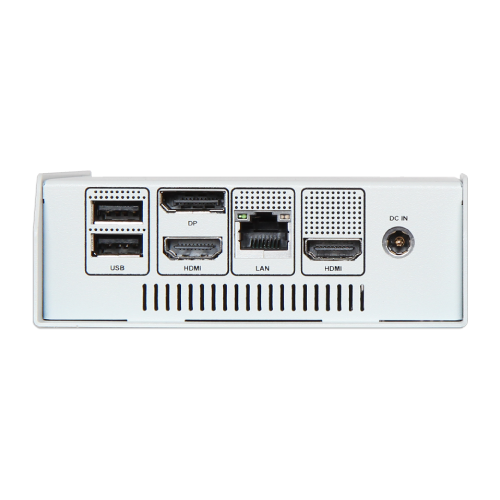

I/O Interface
Serial Port	N/A
USB	3x USB 3.0 (Type-A) 1x USB 3.1 (Type-C)
Audio	1x Line-in/Line-out
Ethernet	1x RJ-45 connector LAN
Display	1x DP up to 4096×2160 2x HDMI up to 3840×2160
Power Supply
Power Input	DC 12V~19V input
Mechanical & Environmental
Operation Temperature	0°C ~ 35°C
Storage Temperature	(- )40°C ~ 70°C
Dimension	113(W)x44(H)x135(D)mm
