MEDS-2000

NUC size Medical System

Product Features

NUC size 1U height compact chassis

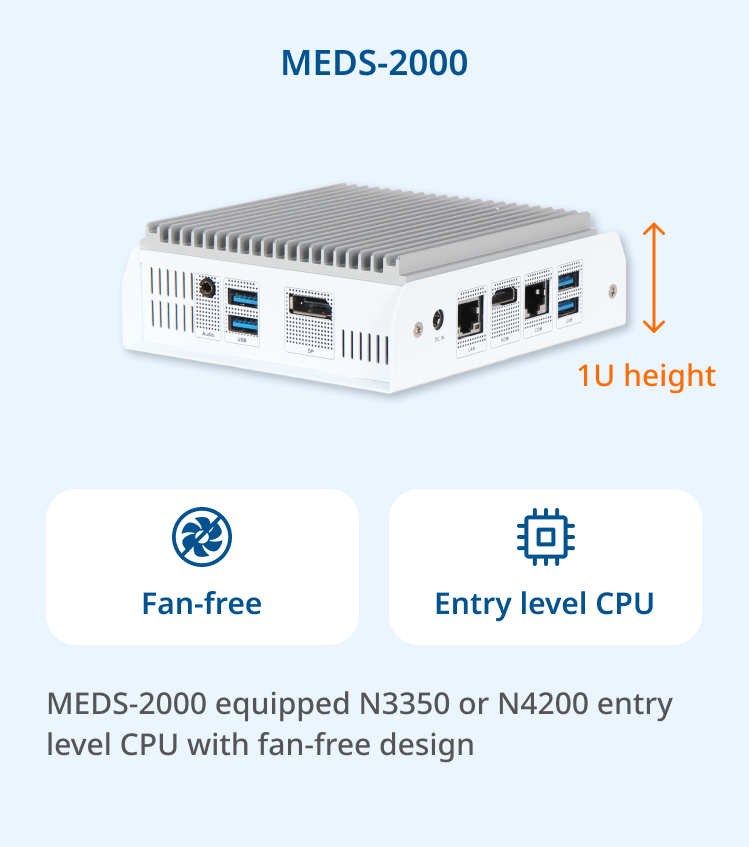

MEDS-2000 equipped entry level CPU with fan free design

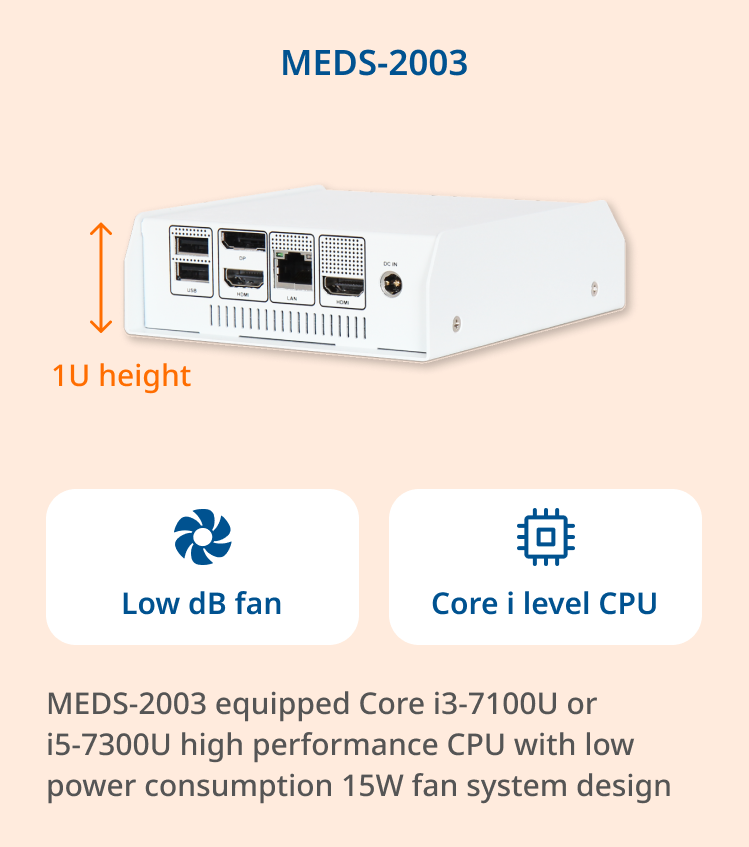

MEDS-2003 equipped Core level CPU with low dB fan design
Unique thermal solution
Rich I/O with dual display and support Wifi + Bluetooth module

System
Processor	Intel® Atom® Apollo Lake SOC, (N3350/N4200) supports Dual/Quad Core (up to 10W) with 2MB Cache
Memory	Dual Channel DDR3L 1866/1600 Non-ECC SO-DIMM up to 8GB
Storage	1x SATA III port (for SATA DOM 128G) 1x Micro-SD 3.0 socket Support Onboard eMMC 5.0 (32G)
BIOS	AMI uEFI BIOS 64MB
Expansion	1x M.2 socket (E+A key) support WiFi, BT, 3G & 4Gt1x PCIe x1 slot
I/O Interface
Serial Port	1x RJ45 connector
USB	4x USB 3.0 (Type-A)
Audio	1x Line-in/Line-out
Ethernet	1x RJ-45 connector LAN
Display	1x DP up to 4096×2160 1x HDMI up to 3840×2160
Power Supply
Power Input	DC 12V input
Mechanical & Environmental
Operation Temperature	0°C ~ 40°C
Storage Temperature	(- )40°C ~ 70°C
Dimension	113(W)x44(H)x135(D)mm
Fan free	Yes

MEDS-2000 Series

NUC size Medical System

Fan-free design / Compact size / Rich I/O
High performance / Medical Certified

MEDS-2000 Series

Small size but High performance

MEDS-2000 series are NUC system with Intel® Core™ i processors mainly for medical equipment control platform and medical gateway in hospital. With rich I/O and slim size features, MEDWEL NUC will be the best choice for medical ICT application. Make it an important part of the smart hospital solution.

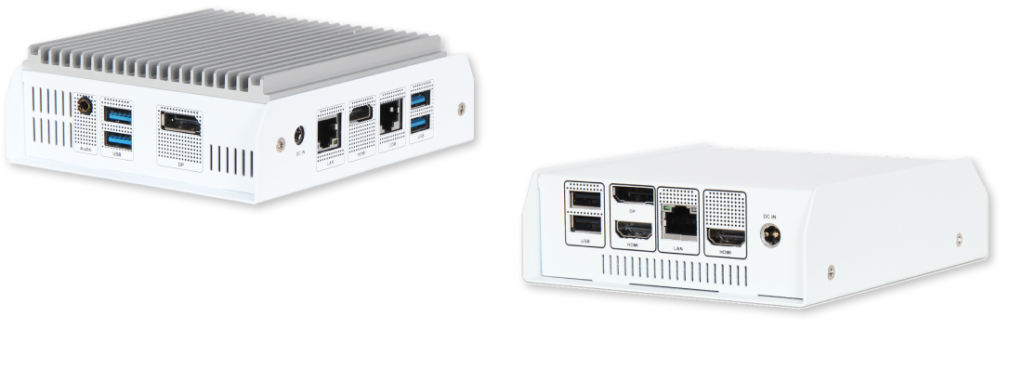

Family look

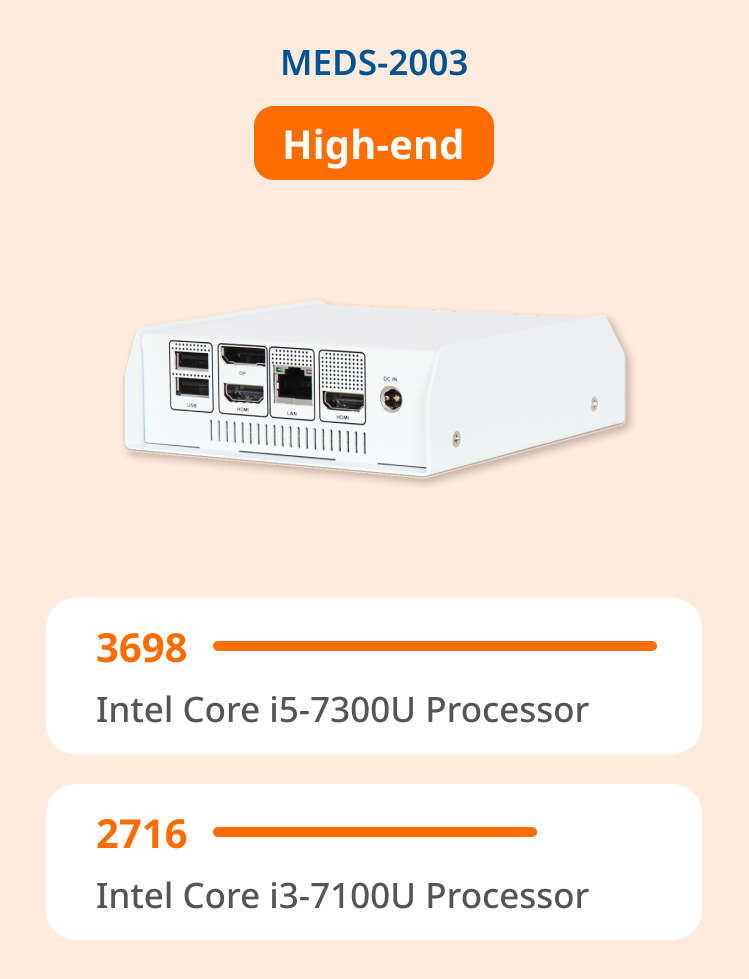

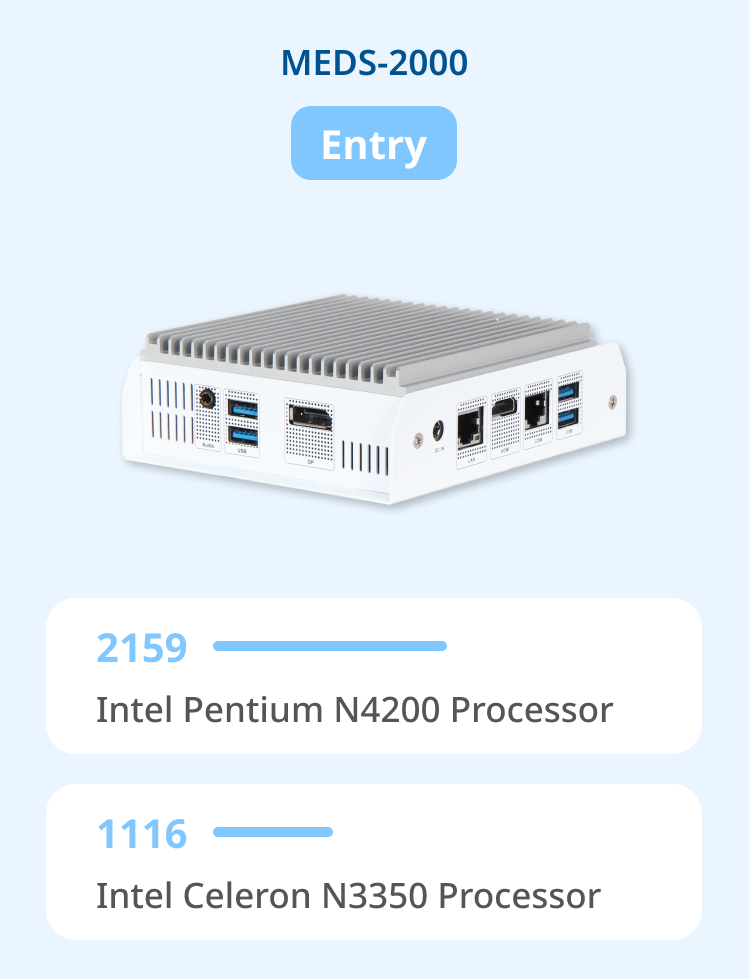

Performance comparison

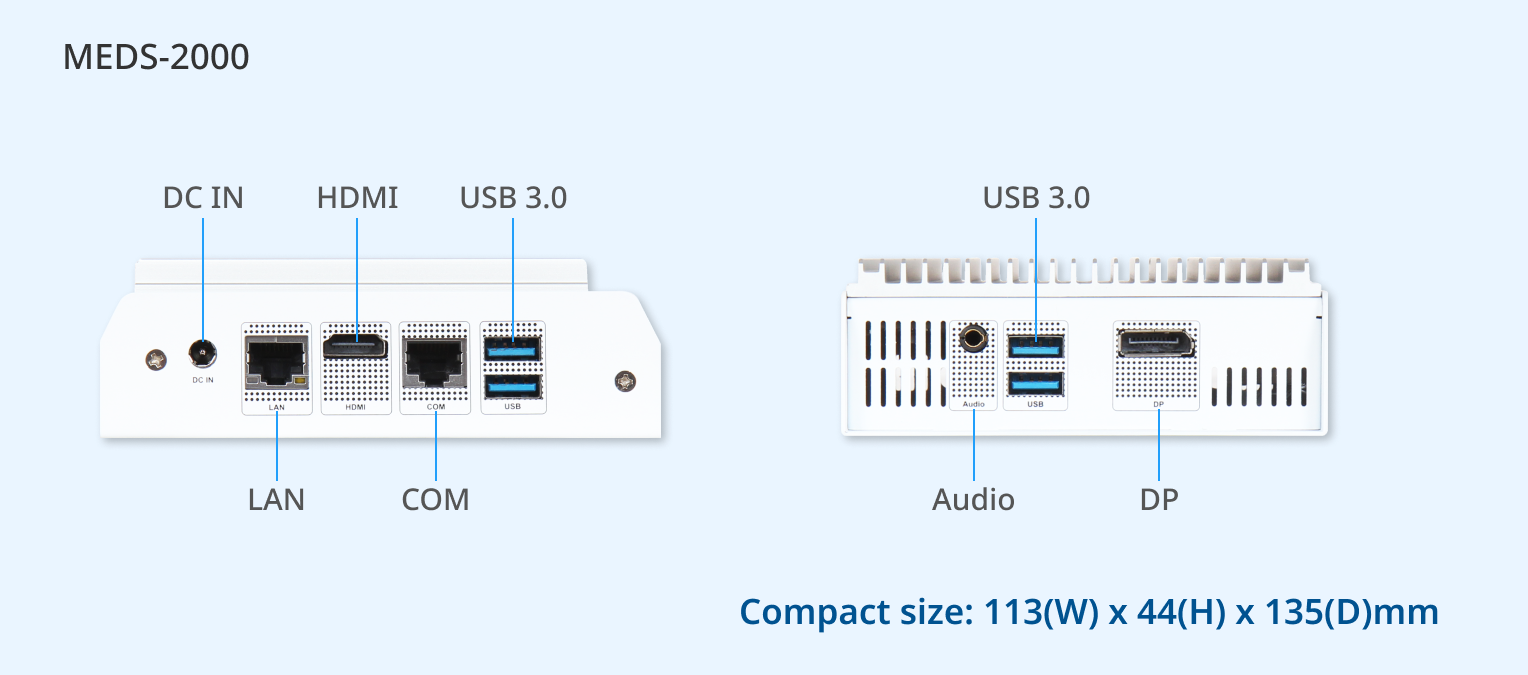

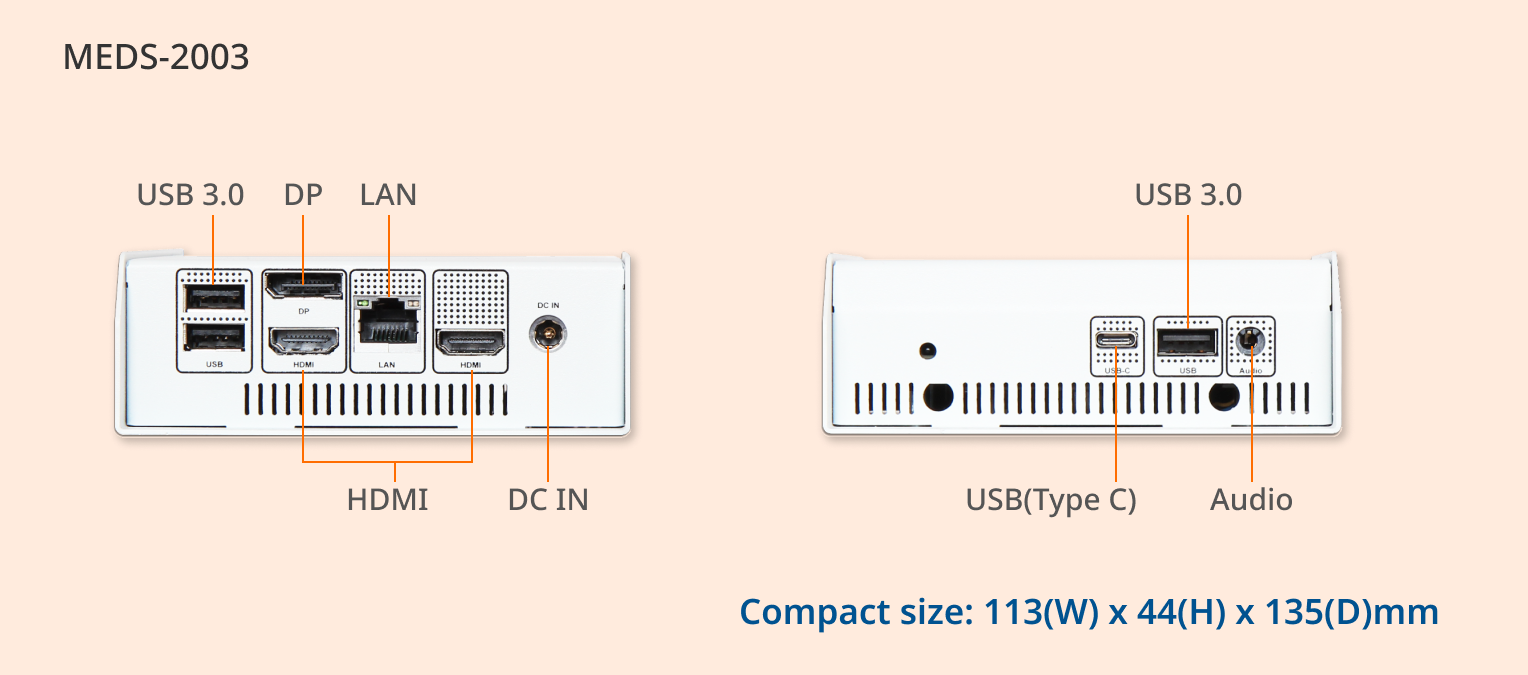

Rich I/O Design

Application

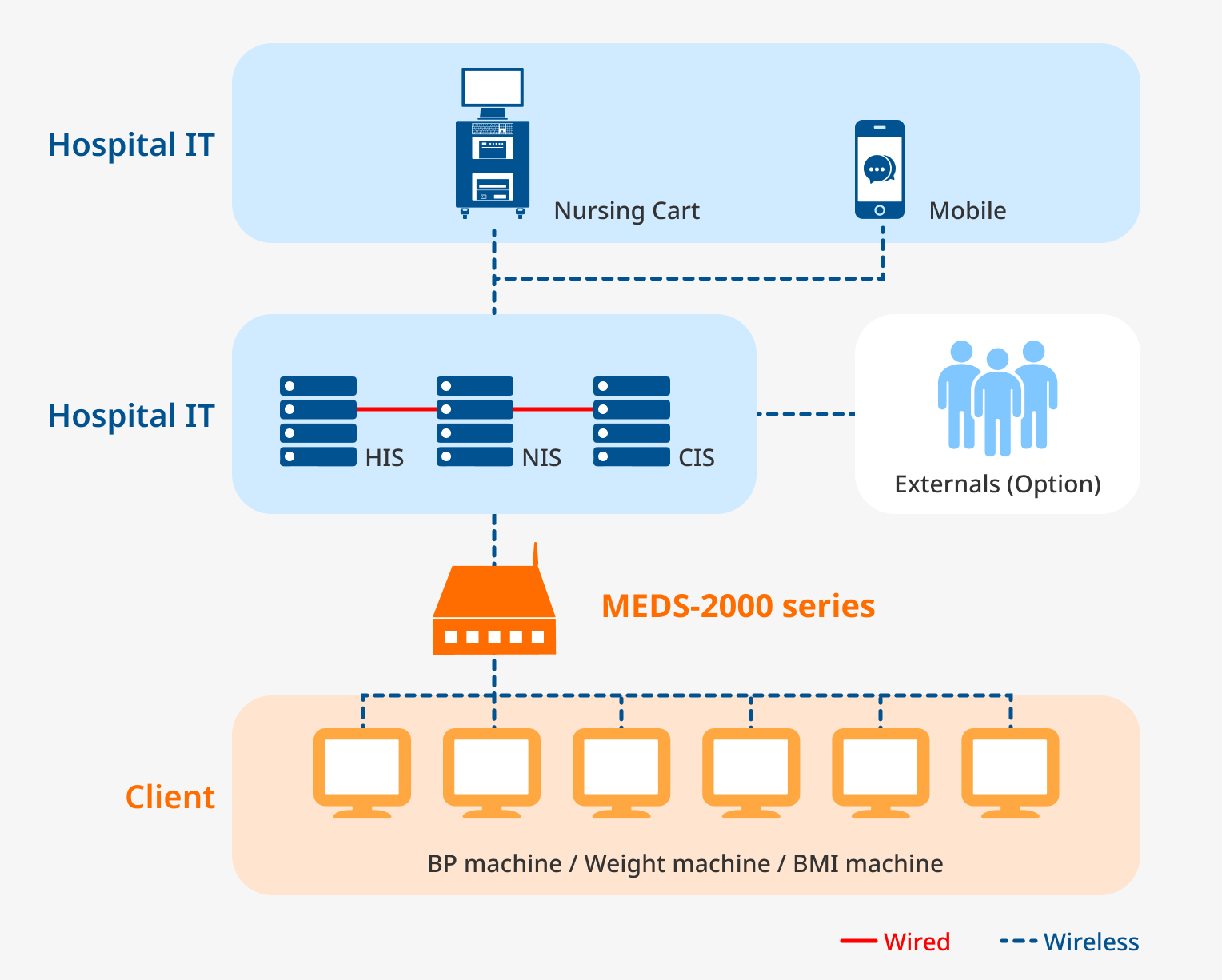

Medical gateway

Various I/O for connect to medical equipment
Wire/ wireless LAN for HIS communication

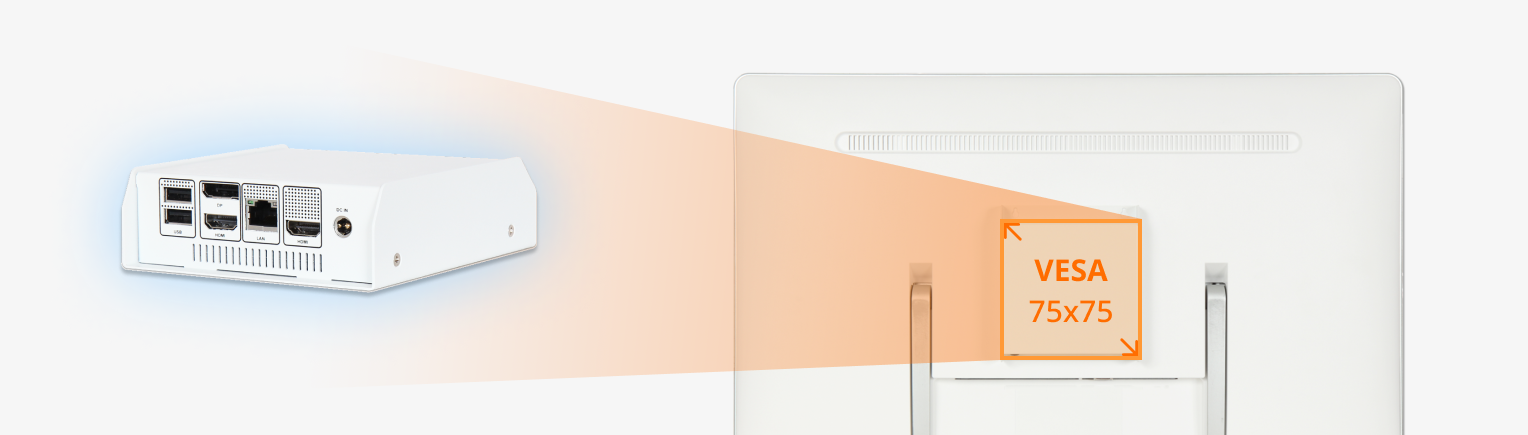

Medical box + Medical monitor

VESA mount NUC chassis design
Combine with medical monitor

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

MEDS-2000

MEDS-2000

Product Features

MEDS-2000 Series

NUC size Medical System

MEDS-2000 Series

Small size but High performance

Family look

Performance comparison

Rich I/O Design

Application

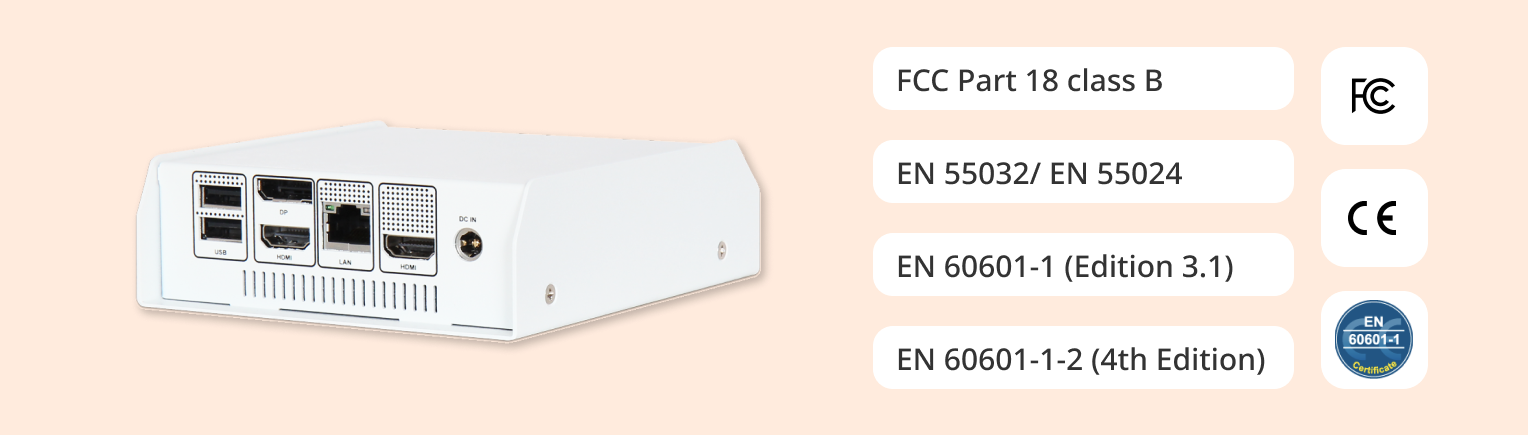

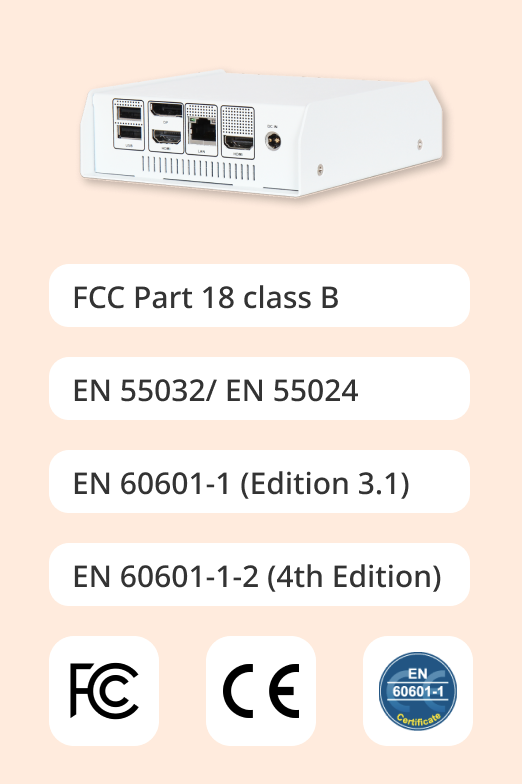

Medical Certified.
