DTEC-C012

System

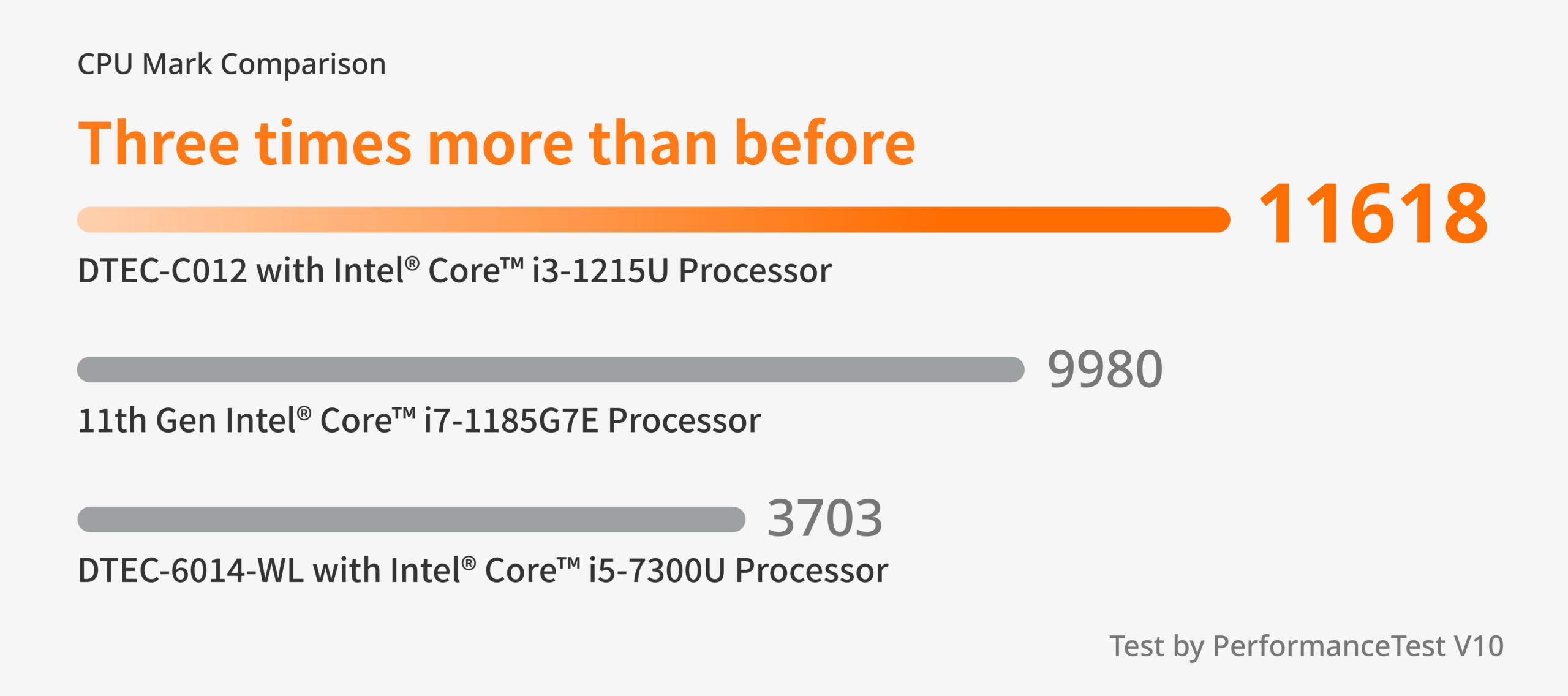

Processor	Intel^® Alderlake Core^TM i3-1215UE PL1 15W/PL2 25W

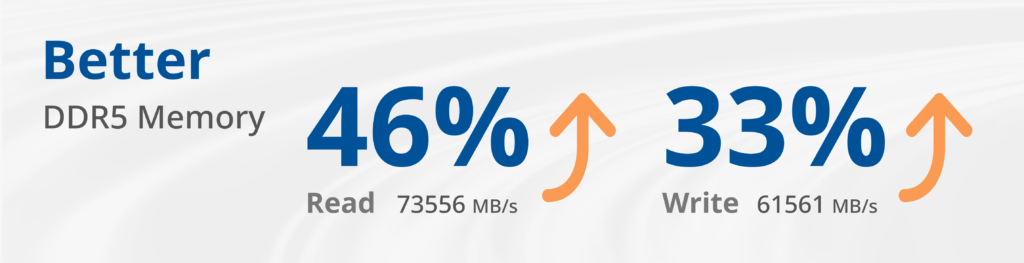

Memory	2x SO-DIMM up to 64GB DDR 5 4800
Storage	1x M.2 NVME with PCIe x4 for SSD 1x SATA3.0 (6.0 Gb/s)
BIOS	AMI uEFI BIOS (SPI ROM)
Expansion	Optional 1x M.2 2230 support Intel WiFi 6 + BT Module
I/O Interface
Serial Port	2x RJ45 COM port
USB	4x USB 3.2 (Type-A) 5x USB 2.0 (Type-A)
Audio	Realtek ALC 897 Audio Codec MIC In/Line-out
Ethernet	2x Intel I225 With 2.5G Gigabit LAN
Display	1x HDMI up to 8K resolution 1x DP up to 8K resolution
Power Supply
Power Input	DC 12~24V DC input
Mechanical & Environmental
Operation Temperature	(- )5°C ~ 40°C
Storage Temperature	(- )40°C ~ 70°C
Dimensions	196(L)x152(W)x44(H)mm
